Pitops System Identification and PID Tuning Simulation Optimization

Est. Reading: 2 minutes

A New Process Control Technological Breakthrough Impacting Industry and Colleges

PID Tuning, APC (Advanced Process Control) Design, System Identification

  • See the PDF with a few slides illustrating
    • Identification of system dynamics (transfer functions) using closed-loop short-duration data amidst noise and unmeasured disturbances
    • Optimization of PID tuning for Slave PIDs, Cascade PIDs and all complex PIDs in DCS/PLC.
  • See the power, uniqueness and simplicity of Pitops
  • Improve Plant Operation and Control Quality
  • Improve Process Control Teaching/Training

Use Excel File Containing Plant Data(or use OPC communication to DCS/PLC)

Pitops System Identification and PID Tuning Simulation Optimization

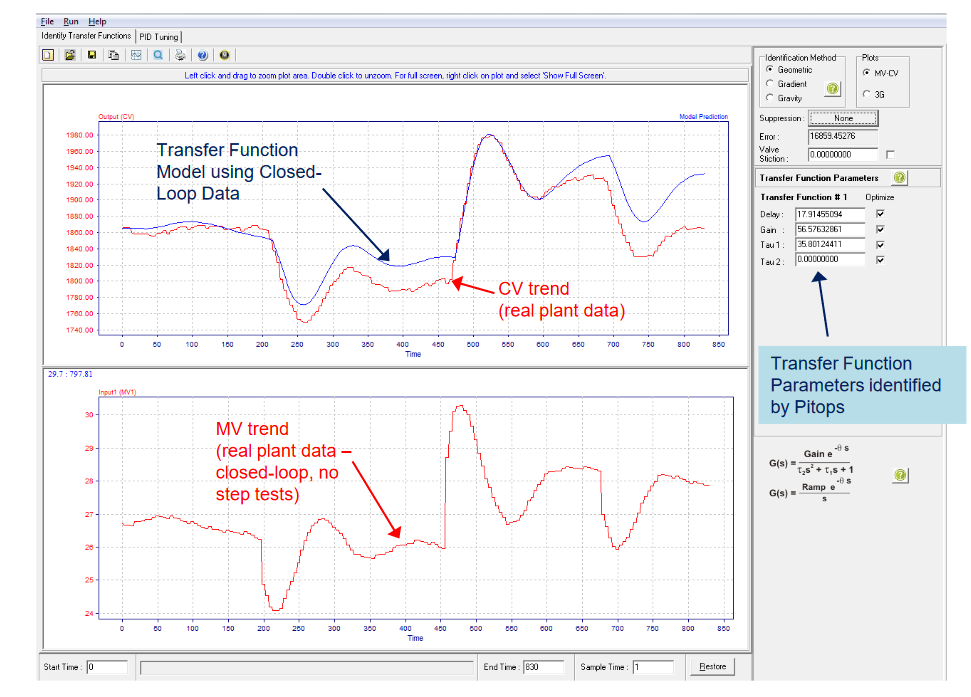

Read Excel Data from Plant into PitopsIdentify Closed-Loop Transfer Function
Pitops System Identification and PID Tuning Simulation Optimization_1

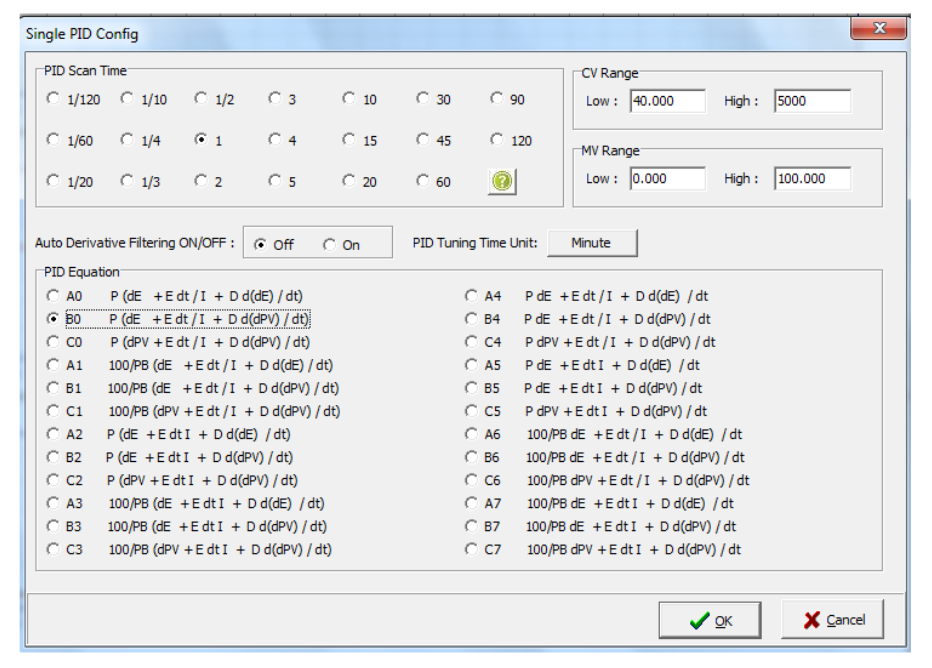

Chose PID Eqn., PID Scan Rate, Set CV and MV Range matching DCS/PLC

Pitops System Identification and PID Tuning Simulation Optimization_2

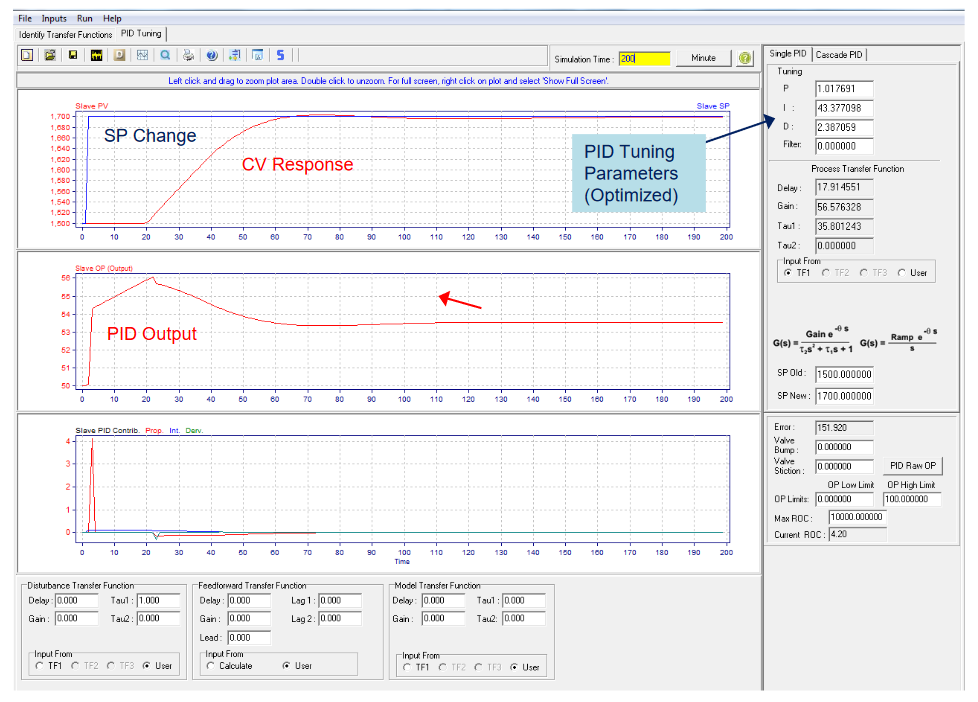

Optimize PID Tuning for SP Change

Pitops System Identification and PID Tuning Simulation Optimization_3

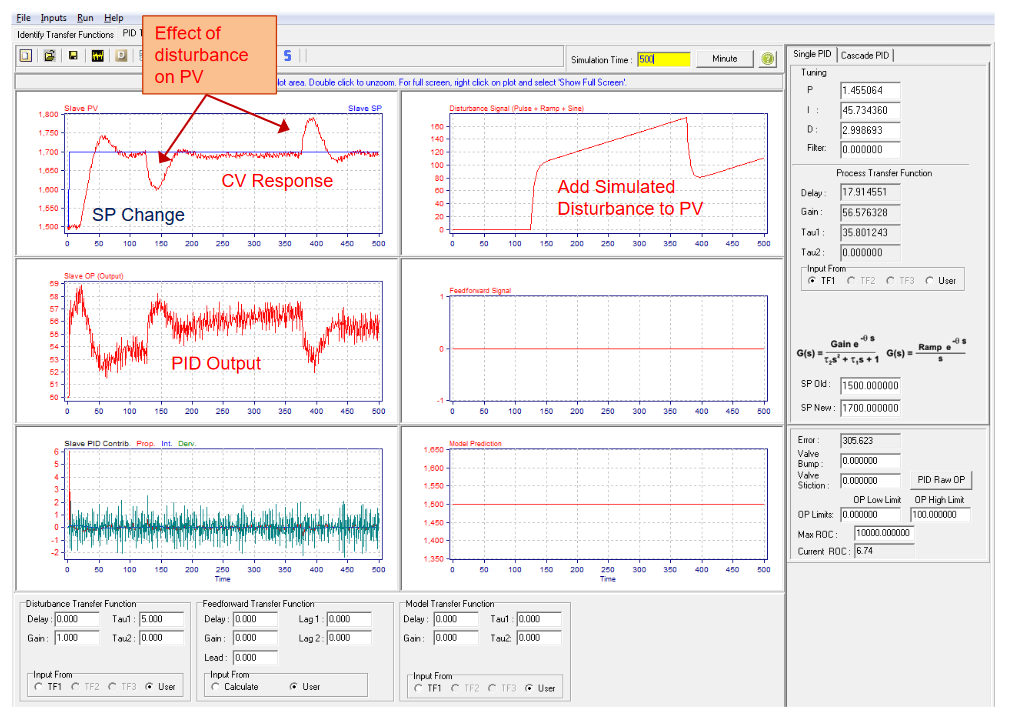

Add Disturbances, Noise and Optimize PID Tuning for SP Change + Disturbances

Pitops System Identification and PID Tuning Simulation Optimization_4

Pitops Uniqueness

  • Multivariable identification– can handle multiple input and multiple outputs.
  • Uses Closed-Loop Data (does not need Open-Loop Step Tests).
  • Works well even if noise and unmeasured disturbances are present.
  • Requires short data window for successful analysis.
  • Calculated PID tuning parameters match exactly with DCS/PLC.
  • Pitops identification and simulation looks like the real DCS/PLC trends.
  • Displays PID output trends explicitly to ensure safe control action.
  • Equipped with latest 3G (geometric/gradient/gravity) technology for rejecting noise and disturbances and calculating true transfer functions.
  • Super-fast execution and super compact code size.
  • Pitops technology is far superior to ARMAX identification, Step Response Coefficient models, Ziegler Nichols, Lambda tuning, frequency domain, Z-discrete domain etc.
  • Pitops is far superior and easier than any other product or technology.
  • Pitops 4GRG algorithm and technology is a revolutionary, novel and a 21st century genuine breakthrough.
  • Does not need advanced education degrees, does not need complex math and theory.
