Real-Time Dynamic Simulator of Flow Controller in Heat Exchanger

PiFlow, a cutting-edge real-time dynamic simulator, is designed to provide comprehensive training in flow control for heat exchangers, featuring complex scenarios and hands-on experience. This simulator software is an invaluable resource for academic institutions, students, and aspiring engineers seeking to master the art of process control and unit design in the realm of chemical engineering. It offers a practical learning approach by enabling users to explore diverse scenarios, observe the effects of varying process conditions on heat exchanger performance, and experiment with both manual and automatic flow control modes. PiFlow serves as an interactive platform for in-depth flow control exploration and the visualization of thermal exchange processes.

info@PiControlSolutions.com, Tel: (832) 495 643

Click on Schedule a Demo to download and to examine a full-blown demo of PiFlow.

Schedule A Demo

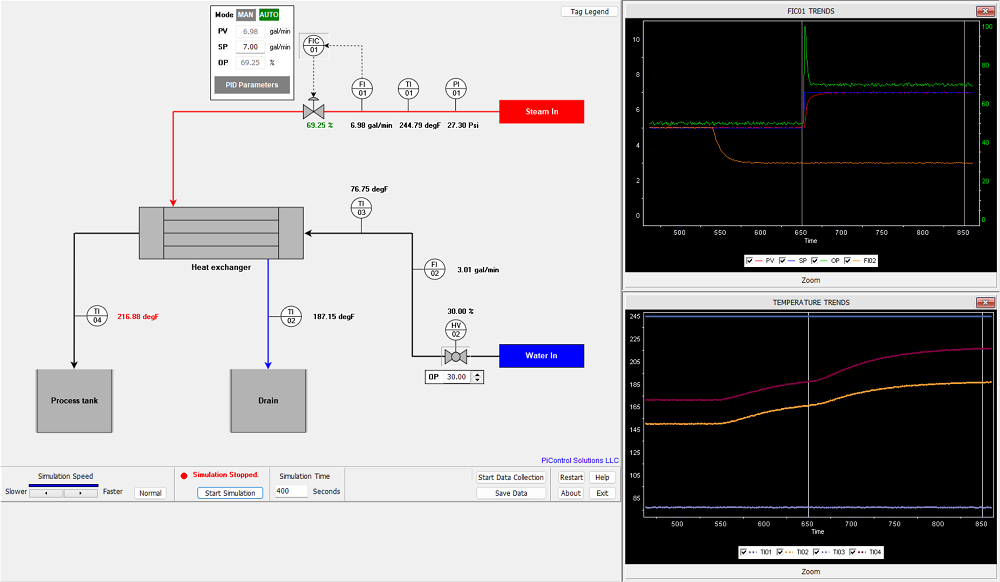

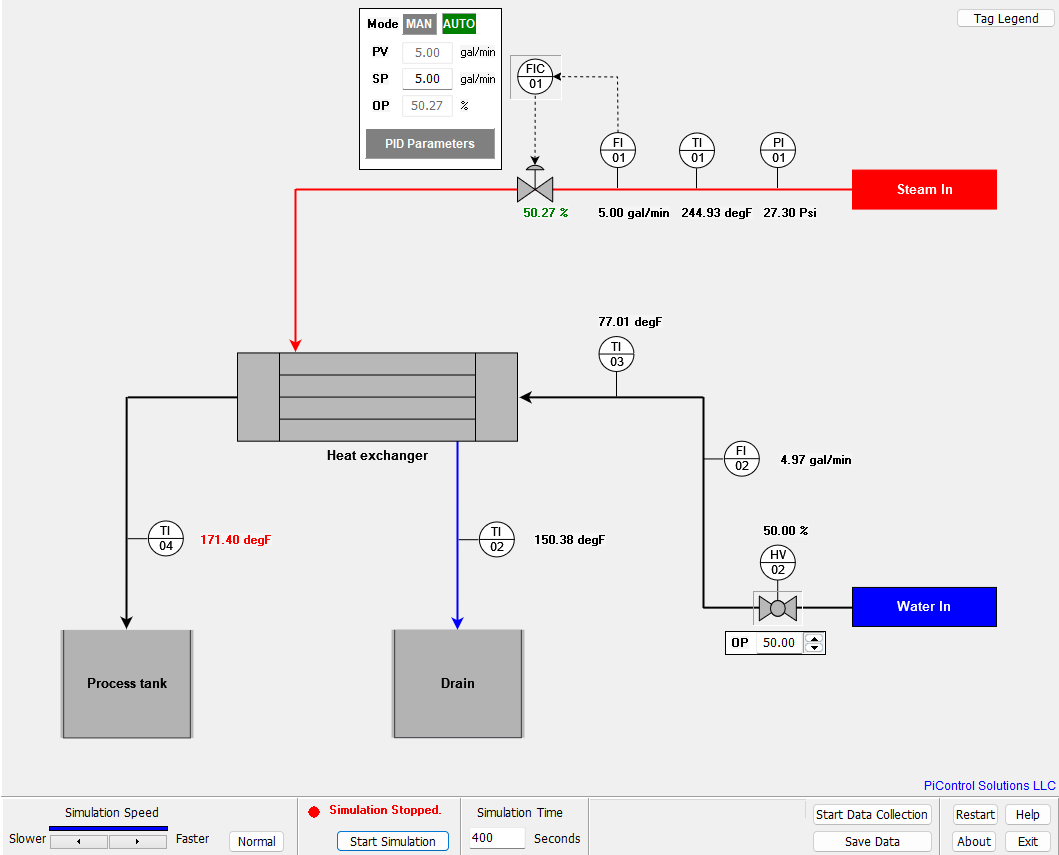

Figure 1: PiFlow Simulator Process Screen


Learning Beyond Theory

PiFlow goes beyond theoretical concepts and establishes an immersive learning environment. Users can manipulate process variables and change flow controller tuning parameters. This hands-on experience provides invaluable insights into the behavior of PID (Proportional-Integral-Derivative) controllers within heat exchanger processes. Such practical exposure prepares users for the real-world challenges they will encounter in industrial settings, particularly those related to flow control and heat exchange processes. Additionally, PiFlow equips users with essential problem-solving skills and a strong foundation in flow control within heat exchangers. Through real-time optimization of the flow control system and continuous outcome analysis, students and young engineers develop the confidence needed to navigate complex industrial processes successfully.

Schedule A Demo

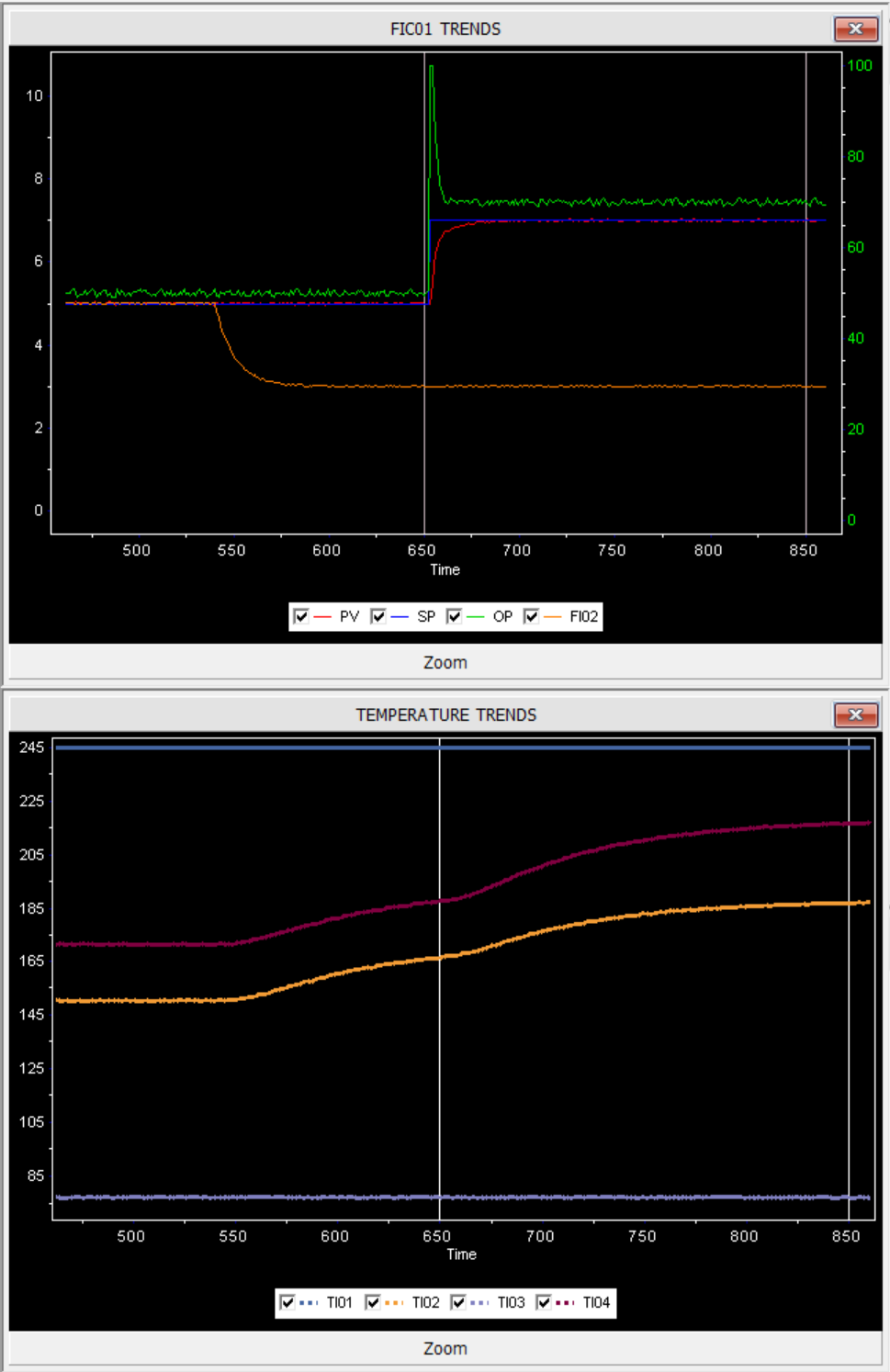

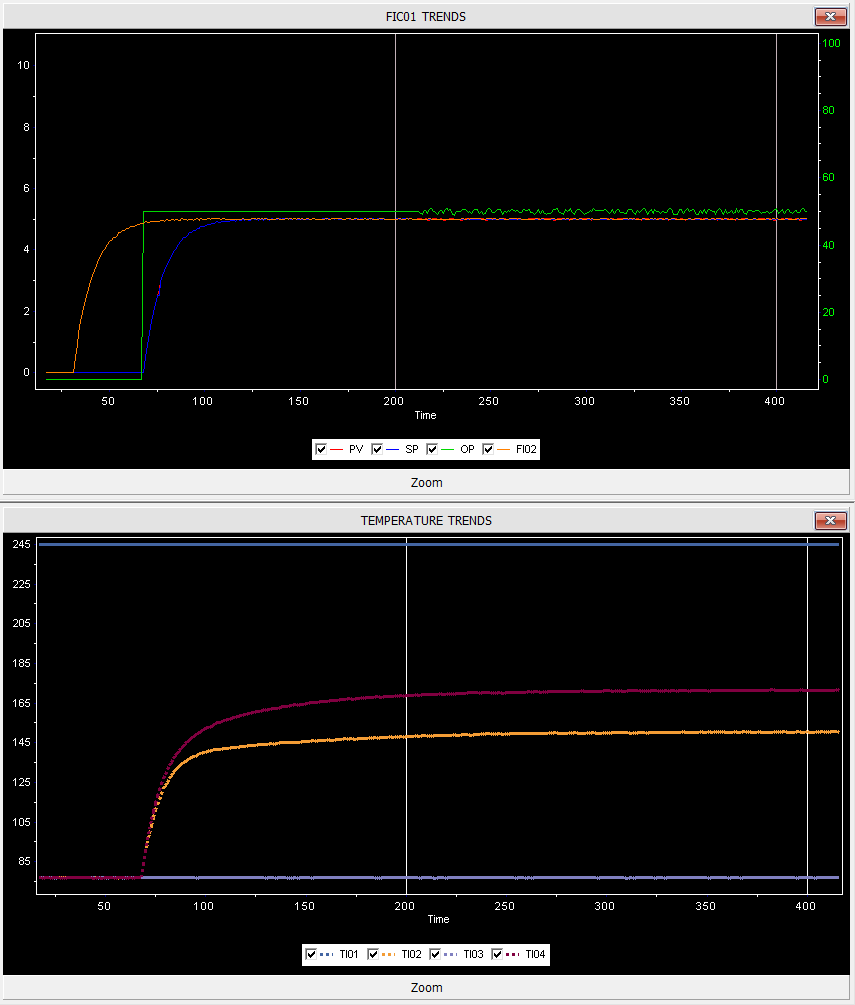

Figure 2: PiFlow Trending Functionality


Process Monitoring and Analysis

PiFlow offers the capability to observe and analyze trends of critical process and controller variables, including Process Variable (PV), Output (OP), and Setpoint (SP). Users can save real-time simulation data for in-depth analysis of controller and process behavior.  This real-time simulator not only enhances students' proficiency as chemical engineers but also prepares them for the dynamic demands of the industry, ensuring their excellence in future roles.

PiFlow stands as an indispensable tool for those aspiring to excel in the field of chemical engineering. Its real-time dynamic simulation capabilities provide a bridge between theoretical knowledge and practical expertise, equipping learners with the skills and confidence needed to thrive in the complex industry world. Discover the power of PiFlow and take a step forward in the realm of process control engineering.

For technical help and additional details on PiFlow and to get free trial software please contact PiControl Solutions Company via email: info@PiControlSolutions.com or by Tel: (832) 495 6436.
