A Beginner’s Guide to Advanced Process Control

Est. Reading: 6 minutes

In the United States, industries such as chemicals, petrochemicals, oil refining, and power generation are continually seeking ways to maximize efficiency and productivity. One crucial method for achieving this is through advanced process control (APC), a paradigm that has become more affordable, agile, scalable, and reliable.

APC primarily involves multi-variable control, adjusting multiple single-loop controllers in unison to meet constraint control and optimization objectives. This approach automates the task of handling multiple variables, capturing incremental gains in capacity, efficiency, and quality.

advanced process control

As we explore APC, we'll introduce its significance in modern industrial operations, explain how APC systems differ from basic control systems, and highlight their benefits. Understanding APC is crucial for professionals in relevant industries, and we'll provide a comprehensive guide to its fundamentals, working principles, and implementation strategies.

Key Takeaways

  • Understanding the basics of Advanced Process Control (APC) and its role in industrial operations.
  • Recognizing the differences between APC and traditional process control methods.
  • Identifying the benefits of implementing APC systems in various industries.
  • Learning about the key components and working principles of APC.
  • Exploring strategies for effective APC implementation.

Understanding Advanced Process Control Fundamentals

In the realm of industrial processes, advanced process control (APC) has emerged as a critical component for optimizing operations. APC represents a sophisticated approach to automating industrial processes, going beyond basic control methods to ensure efficiency, safety, and product quality.

What is Advanced Process Control?

Advanced process control refers to the use of complex algorithms and mathematical models to control industrial processes. It is an upgrade to traditional Process Automation Systems (PAS), enabling more precise and proactive control. The most common automated multivariable control technology in use today is model-predictive control (MPC), characterized by detailed process models and embedded optimizers.

advanced process control

The Evolution of Process Control Systems

The development of process control systems has been a gradual process, from manual operations to basic automation and finally to advanced process control systems capable of handling complex, multi-variable processes. Over time, industries have adopted these technologies, evolving implementation approaches to suit their needs.

Key Components of APC Systems

Modern APC systems comprise several key components, including distributed control systems, model predictive controllers, and optimization algorithms. These components work together to predict future behavior of processes and make proactive adjustments, rather than simply reacting to changes. By understanding these components, industries can better appreciate the value of APC in enhancing their operations.

How Advanced Process Control Works

Understanding how advanced process control works requires a look into its operational framework. Advanced Process Control (APC) systems are designed to optimize complex industrial processes by utilizing a multi-layered control structure.

The Control Hierarchy Pyramid

The operational framework of APC can be visualized as a pyramid. At the top, APCs execute set points with base-layer controllers (BLCs) such as programmable logic controllers or distributed control systems. The concept of control loops is fundamental here, as APC systems manage multiple interconnected variables simultaneously to achieve optimal process performance. The pyramid structure illustrates how different control layers interact to maintain stability and efficiency.

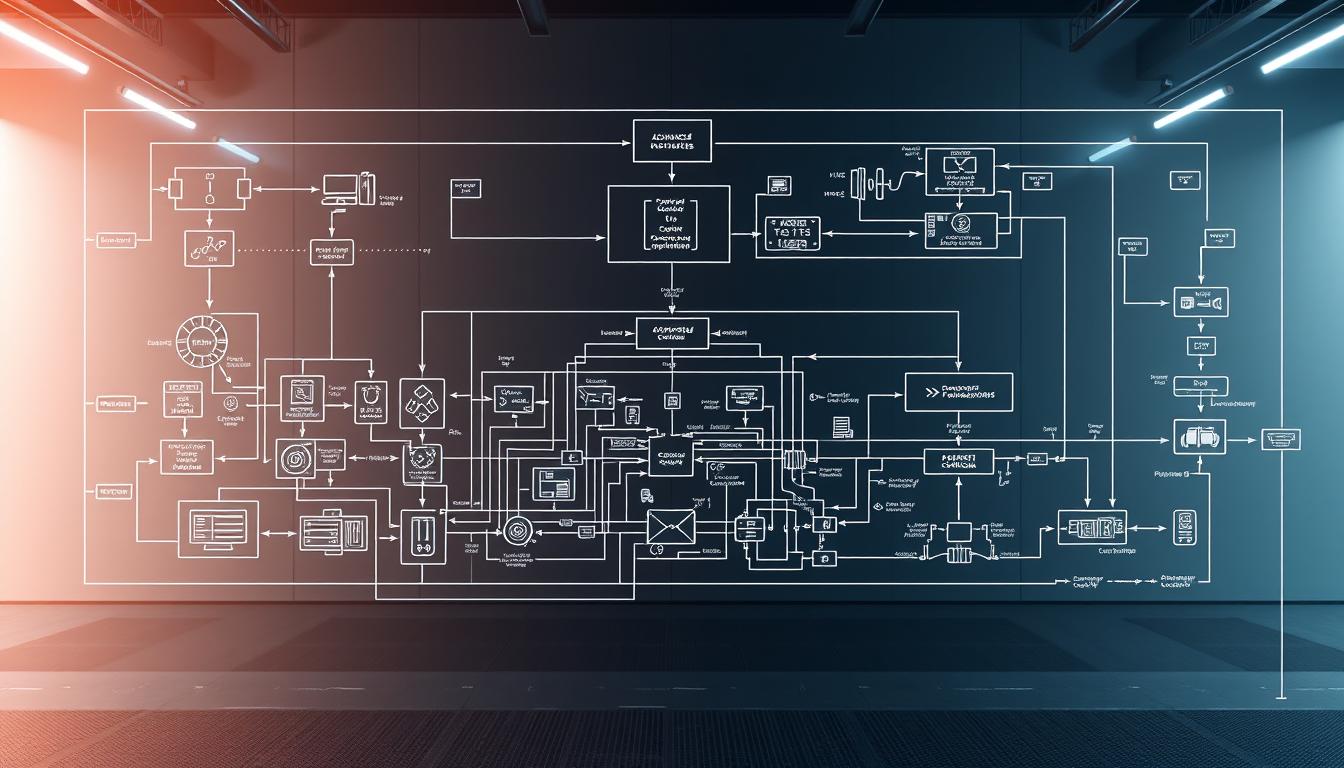

advanced process control hierarchy

Model Predictive Control Explained

Model Predictive Control (MPC) is the most widely used APC technology. MPC relies on dynamic models of the process, often linear empirical models obtained through system identification. The main advantage of MPC is its ability to optimize the current timeslot while considering future timeslots. This is achieved by using process models to predict future behavior and optimize control actions. The controller uses these predictions to make adjustments, ensuring optimal process optimization.

Soft Sensors and Inferential Analyzers

Soft sensors, or inferential analyzers, are software tools that process multiple measurements together. The interaction of these signals can be used to estimate properties of the material being processed. This technology enhances the response of APC systems by providing real-time estimates of difficult-to-measure process variables. By leveraging mathematical correlations, soft sensors improve the overall control and optimization of the process.

Benefits of Implementing Advanced Process Control

The adoption of advanced process control systems is revolutionizing the way companies manage their processes. By implementing APC, organizations can achieve significant improvements in their operations.

Quantitative Benefits: Yield, Capacity, and Energy Savings

The quantitative benefits of APC are substantial, with improvements in production yield, throughput capacity, and energy savings. Companies have reported increases in yield by optimizing process conditions, leading to higher productivity and reduced waste. Additionally, APC helps in maximizing capacity utilization, allowing businesses to produce more without significant capital investments. The reduction in energy consumption not only lowers operational costs but also contributes to a more sustainable operation.

Qualitative Benefits: Stability and Reduced Maintenance

Beyond the quantitative advantages, APC also offers qualitative benefits, including improved process stability and reduced variability. This leads to more consistent product quality and reduced operator dependence. Moreover, by operating processes more smoothly and avoiding extreme conditions, APC implementation reduces maintenance requirements and extends equipment life.

Return on Investment for APC Implementation

The return on investment (ROI) for APC projects is typically realized within 6-12 months. The optimization achieved through APC leads to significant cost savings, improved performance, and enhanced operational excellence. By reducing energy consumption and improving resource utilization, companies can achieve a substantial ROI, making APC a valuable investment for industries seeking to improve their process control capabilities.

Overall, the implementation of advanced process control is a strategic decision that can lead to significant operational improvements, cost savings, and enhanced competitiveness in the industry.

Implementation Strategy for Advanced Process Control

Implementing advanced process control (APC) requires a strategic approach to maximize its benefits in industrial environments. A successful APC implementation involves several key steps that help industries achieve optimal process control and improved operational efficiency.

Establishing a Stable Base Layer Control

A stable base layer control is the foundation for any APC implementation. It is essential to tune PID parameters and introduce enhanced regulatory control before implementing Model Predictive Control (MPC) systems. This step ensures that the existing control loops are functioning correctly and provides a stable operating environment for APC.

Implementing Soft Sensors and MPC

The next step involves implementing soft sensors and MPC. Soft sensors help estimate process variables that are difficult to measure directly, while MPC uses these estimates to optimize process control. By using prioritized constraints, MPC realizes optimization of control variables and economic formulas for both steady-state and static optimization objectives. This step improves potential benefits while reducing costs and efforts compared to the final step of process optimization.

Real-Time Process Optimization

The final step is implementing the first principle model-based real-time process optimization. This involves defining rigorous static process models and setting data reconciliation. Great efforts are required not only for developing these models but also for maintaining them over time. Real-time process optimization enables companies to maximize their economic objectives and achieve optimal operating conditions.

Implementation StepDescriptionKey Benefits
Establishing a Stable Base Layer ControlTune PID parameters and enhance regulatory controlStable operating environment, improved control loop performance
Implementing Soft Sensors and MPCEstimate process variables and optimize process controlImproved process optimization, reduced costs
Real-Time Process OptimizationDefine and maintain rigorous static process modelsMaximized economic objectives, optimal operating conditions

By following these steps and ensuring proper training and knowledge transfer, industries can achieve sustainable APC performance and maximize the benefits of advanced process control.

FAQ

What is the primary goal of implementing Advanced Process Control (APC) in industrial operations?

The primary goal of APC is to optimize process performance by maximizing efficiency, yield, and capacity while minimizing energy consumption and reducing maintenance costs.

How does Model Predictive Control (MPC) contribute to APC systems?

MPC is a key component of APC that uses mathematical models to predict future process behavior, enabling the system to make adjustments to maintain optimal operating conditions.

What is the role of soft sensors in APC?

Soft sensors, also known as inferential analyzers, use process models and real-time data to estimate process variables that are difficult or expensive to measure directly, enhancing the accuracy of process optimization.

How does APC impact energy consumption in industrial processes?

By optimizing operating conditions and reducing variability, APC can lead to significant energy savings, contributing to a more sustainable and cost-effective operation.

What are the key steps in implementing an APC strategy?

A successful APC implementation involves establishing a stable base layer control, implementing soft sensors and MPC, and achieving real-time process optimization.

How do APC systems handle changing process conditions?

APC systems are designed to adapt to changing process conditions by continuously monitoring and adjusting set points to maintain optimal performance.

What is the expected return on investment (ROI) for APC implementation?

The ROI for APC implementation varies depending on the specific application, but it is generally positive, with benefits including increased production capacity, reduced energy consumption, and improved product quality.

Conclusion: The Future of Advanced Process Control in Industry

As we integrate advanced process control into our industrial operations, it's revolutionizing the way businesses operate, making them more competitive. At PiControl Solutions, we understand the challenges of implementing and maintaining effective process automation systems in today's complex industrial environments across the United States.

The importance of continuous improvement in APC implementation and maintenance cannot be overstated. It ensures sustained benefits over the long term and positions organizations for future success in an increasingly competitive global marketplace. We are committed to helping industries navigate the complexities of APC. We invite you to contact us at (832)495-6436 or info@PiControlSolutions.com for expert guidance on implementing advanced process control solutions tailored to your specific needs. By investing in APC technology, organizations are not just improving their current operations; they are also laying the groundwork for future advancements. As we continue to push the boundaries of what is possible with APC, we look forward to collaborating with industry leaders to shape the future of industrial operations.
