From Raw Material Variability to Non-linear Process Gain: How Auto-Adaptive Control Systems Cope

Industrial processes rarely behave as textbook models suggest. Raw materials arrive with varying compositions, ambient conditions fluctuate, equipment degrades, and operating points shift. Traditional fixed-parameter PID controllers designed for "average" conditions struggle to maintain optimal performance across these varying scenarios. Auto-adaptive control systems address this fundamental challenge by continuously adjusting their behavior in response to changing process dynamics.

The Challenge of Process Variability

Raw Material Variability: The Silent Profit Killer

Raw material input variability represents one of the most significant challenges in modern manufacturing. In food processing alone, climate change and supply chain fragmentation have intensified this challenge, with studies indicating that variability contributes to up to 20% food loss and severe margin erosion.¹

Consider a potato processing plant producing tens of thousands of tons annually. Even a 1% loss in yield translates into hundreds of tons of lost products, costing hundreds of thousands of dollars per year. Beyond financial impact, variability affects brand reputation through inconsistent quality, potential recalls, and customer complaints.¹

The challenge extends far beyond food processing. In petroleum refining, crude oil quality varies significantly between sources and even between shipments. In pharmaceutical manufacturing, active ingredient concentrations fluctuate. In pulp and paper, wood chip moisture content changes seasonally. Each of these variations demands different control responses for optimal operation.

Non-linear Process Gain: When Constants Aren't Constant

Most feedback control techniques, including the PID algorithm, rely on the principle of linearity a guarantee that a Y% change in the process variable follows an X% change in control effort, with a fixed ratio (gain) between X and Y regardless of operating point.²

Reality is far more complex. A classic example is pH control, where the relationship between reagent addition and pH is highly non-linear:

A controller attempting to raise pH from an acidic range all the way to alkaline would proceed much too aggressively through the neutral range if it assumed a single low gain throughout. Conversely, it would be excessively conservative in the acidic and alkaline ranges if it assumed the high gain of the neutral zone prevailed throughout.²

Similar non-linearities appear in:

• Heat exchangers: Gain varies with flow rates and temperature differentials
• Distillation columns: Gain depends on reflux ratios and compositions
• Compressors: Gain changes across the operating envelope
• Reactors: Gain shifts with conversion rates and catalyst activity

Traditional Solutions: Fixed-Logic Control

For decades, industrial automation has relied on fixed control systems, where controllers execute logic based on static, pre-tuned parameters. These systems are rigid, reliable, and excellent at maintaining consistency, but they struggle with variability.³

Limitations of Static Approaches

Most PLCs and SCADA systems operate on fixed setpoints. They cannot detect when the underlying process model no longer matches reality. Operators compensate manually, adjusting temperatures, mixing times, or feed rates based on experience but by the time deviation is visible, the loss has already occurred.¹

Recipe-based automation and periodic laboratory feedback work well when raw materials behave consistently. However, in modern plants facing material variability, labor shortages, and higher throughput demands, traditional static optimization in a dynamic environment leaves facilities perpetually one step behind their raw materials.¹

Auto-Adaptive Control: The Fundamental Shift

The fundamental characteristic that sets adaptive control systems apart is their ability to modify their own parameters and structure in response to changing conditions. These systems monitor the performance of the process they control, assess the efficacy of current control parameters, and adjust accordingly to optimize performance.⁴

Model Reference Adaptive Systems (MRAS)

The most common class of adaptive control is Model Reference Adaptive Systems. In MRAS, the adaptive controller aims to control a process so its output follows a reference model. It accomplishes this by continually adjusting control parameters based on the error between actual process output and the reference model output.⁴

This approach is particularly effective when:

• The desired response characteristics are well-defined
• Process dynamics change slowly relative to the control loop bandwidth
• Stability can be guaranteed through proper adaptation rate selection

Self-Tuning Controller (STR)

Self-Tuning Controller represent another important adaptive control class. STRs adjust control parameters based on an identification model that continuously estimates the parameters of the process being controlled.⁴ The controller effectively maintains an internal model of the process and updates this model in real-time.

The basic self-tuning approach involves:

1. System Identification: Estimating process model parameters from input-output data
2. Controller Design: Computing optimal control parameters based on the current model
3. Parameter Update: Implementing new control parameters
4. Repeat: Continuously cycling through steps 1-3

In practice, deploying self-tuning Controller across many PID loops can be challenging without the right tooling. This is where PiControl Solutions’ SUPERTUNE provides a practical advantage: it is a fully automatic and auto-adaptive online PID tuning and optimization technology that continuously monitors loop performance and adjusts PID parameters in real time, without intrusive step tests or operator intervention.¹²

SUPERTUNE complements the concepts behind self-tuning Controller by bringing adaptive PID control into everyday industrial environments, even on loops with severe nonlinearities, noisy signals, or very fast or very slow dynamics.

Gain Scheduling: Addressing Non-linear Process Gain

The Classic Solution

Gain scheduling provides a proven approach for processes with known non-linear characteristics. The technique uses auxiliary measurements that correlate with process non-linearities to adjust controller parameters as operating conditions change.⁵

The implementation approaches include:

Automatic Gain Schedule Generation

Modern auto-tuning controllers can populate gain schedules automatically. The controller performs its tuning test the first time the process variable enters a particular range, then retrieves the computed gain whenever the process variable returns to that range. This represents a practical form of adaptive control that builds process knowledge over time.²

PiControl Solutions' PITOPS (PID Tuning Optimization Software) takes this concept further by using advanced mathematical optimization specifically Nonlinear Constrained General Reduced Gradient (NC-GRG) methods to compute optimal PID parameters across multiple operating regions without requiring disruptive step tests. By analyzing historical plant data, PITOPS identifies how process dynamics shift across operating conditions and generates tuning parameters that maintain robust performance throughout the operating envelope.¹²

Feedforward Control: Proactive Disturbance Rejection

The Feedforward Advantage

Feedforward control directly addresses raw material variability by measuring disturbances before they affect the controlled variable and taking preemptive corrective action. Unlike feedback control, which must wait for disturbances to corrupt the output before responding, feedforward control can achieve near-perfect disturbance rejection when properly designed.⁶

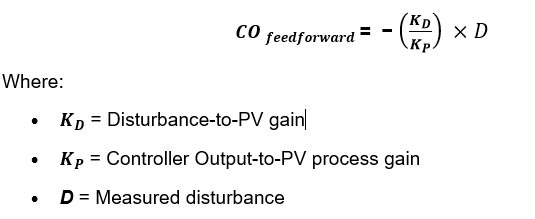

The feedforward controller computes corrective action as:

Applications in Variability Management

Feedforward control excels at rejecting the influence of raw material variations in chemical processes.⁷ Practical applications include:

• Fuel gas heating value compensation: Measuring BTU content and adjusting fuel flow
• Feed composition compensation: Adjusting reactor conditions based on inlet analysis
• Ambient temperature compensation: Adjusting cooling duty based on outdoor temperature
• Moisture content compensation: Adjusting dryer settings based on inlet moisture

The key prerequisite is that the disturbance must be measurable. Fortunately, modern instrumentation including online analyzers, NIR sensors, and machine vision systems makes an increasing range of raw material properties measurable in real-time.⁶

AI/ML-Driven Adaptive Control: The Modern Frontier

Reinforcement Learning for PID Optimization

Recent advances combine artificial intelligence with classical control theory. Reinforcement learning (RL) approaches frame PID tuning as an optimization problem where an agent learns to select parameters that maximize a reward signal based on control performance.⁸

The approach offers several advantages:

• Reduced online training time: Initial learning in simulation, refinement on actual process
• Safe operation: Constrained learning ensures parameters stay within safe bounds
• Adaptation to real-world dynamics: The agent continuously refines its policy based on actual performance

Research demonstrates that RL-based tuning can significantly outperform traditional methods, particularly for processes with complex dynamics or multiple operating modes.⁸

Commercial solutions such as PiControl’s SUPERTUNE apply these adaptive and AI-driven principles in a practical way, delivering continuous PID control loop optimization online, across a wide range of industrial processes, without requiring manual retuning or dedicated test campaigns.

Neural Network-Based Adaptive Tuning

Auto-tuning neurons provide another approach, where PID gains are represented by neural network elements with adjustable parameters. These parameters are tuned online using gradient descent methods, allowing the controller to continuously adapt to changing process conditions.⁹

Key features include:

• Multivariable capability: Handles coupling between control loops
• Unrestricted output range: Not limited to fixed parameter bounds
• Simpler architecture: Direct gain tuning without fully connected networks

Simulation and experimental studies show that adaptive PID controllers based on auto-tuning neurons can achieve superior output responses compared to fixed-parameter controllers.⁹

Hybrid PSO-DQN Approaches

State-of-the-art research integrates Particle Swarm Optimization (PSO) with Deep Q-Network (DQN) reinforcement learning for adaptive non-linear fractional-order PID tuning. This hybrid framework ensures global optimization and real-time adaptability under fluctuating operational parameters.¹⁰

Results demonstrate superior performance over traditional methods and advanced techniques including:

• Genetic Algorithms (GA)
• Fuzzy Logic Controllers (FLC)
• Neural Network-based PID (NN-PID)

Multivariable Adaptive Control: When Loops Interact

Many industrial processes exhibit strong interactions between control loops adjusting one variable affects others in complex ways. Distillation columns, reactor systems, and heat exchanger networks are classic examples where single-loop adaptive control falls short.

PiControl Solutions' COLUMBO (Closed-Loop Universal Multivariable Optimizer) addresses this challenge by providing Model Predictive Control (MPC) capabilities that adapt to changing process conditions without the maintenance burden of traditional MPC systems. COLUMBO continuously updates its internal process models using closed-loop plant data, ensuring that multivariable control remains effective even as feed compositions change, equipment degrades, or operating objectives shift.¹²

Unlike conventional MPC implementations that require periodic and often disruptive step testing to re-identify process models, COLUMBO's approach maintains controller performance through continuous model adaptation, making it particularly well-suited for processes facing persistent variability challenges.

Dynamic Process Control: Real-Time Adaptation

Machine Vision and Sensor Integration

Modern Dynamic Process Control (DPC) systems integrate data from vision systems, sensors, and inline measurements to understand actual product behavior not just machine states.¹

When starch levels rise or moisture drops, parameters like fryer temperature, mixing speed, or drying time are automatically tuned to compensate. It is no longer about rigid recipes but dynamic control responding to product behavior in real-time.¹

Predictive Adaptation

Advanced AI-driven models can predict variation before it affects quality, transforming process control into process intelligence. By learning system dynamic characteristics, these systems predict what might happen next and adjust parameters before problems arise.¹¹

This predictive capability is especially beneficial in:

• Robotics: Adjusting to payload changes or environmental shifts
• Chemical plants: Maintaining stability during feed changes
• Temperature control systems: Reducing energy use while ensuring quality¹¹

Implementation Considerations

When to Use Each Approach

Practical Guidelines

For gain scheduling:

• Identify scheduling variables that correlate with process gain changes
• Ensure smooth transitions between gain regions
• Validate stability across all operating regions

For feedforward control:

• Measure disturbances as far upstream as practical
• Characterize disturbance-to-PV dynamics accurately
• Use feedforward with feedback trim never feedforward alone

For self-tuning controllers:

• Start with conservative adaptation rates
• Implement bounds on parameter excursions
• Monitor for excessive parameter variation indicating problems

For AI/ML approaches:

• Begin training in simulation to minimize equipment stress
• Implement safety constraints on learned parameters
• Maintain fallback to conventional control during learning phases

The Future: Adaptability as Competitive Advantage

The plants that thrive will not be those that chase perfect stability, but those built to adapt. They capture the intuition of skilled operators and scale it across every shift, every product, and every season.¹

In a world where variability is inevitable, adaptability becomes the new measure of control excellence. Modern adaptive control systems whether based on classical gain scheduling, feedforward compensation, self-tuning Controller, or AI-driven methods provide the tools to transform process control from reactive firefighting to proactive optimization.

The question for every process operator is simple: are your control systems designed for yesterday's average conditions, or ready to perform under tomorrow's uncertainty?

Partner with PiControl Solutions

Implementing adaptive control strategies requires more than software, it demands deep process control expertise, proven methodologies, and tools designed for real-world industrial challenges. PiControl Solutions has helped facilities across refineries, chemical plants, and manufacturing operations achieve measurable results in handling process variability and non-linear dynamics.

How We Help:

• PITOPS Software: Optimize PID loops across multiple operating regions using historical plant data no disruptive step tests required. Our NC-GRG optimization algorithms compute robust tuning parameters that perform across your full operating envelope.
• COLUMBO MPC: Implement multivariable predictive control that adapts continuously to changing process conditions, without the maintenance headaches of traditional MPC systems.
• SUPERTUNE: automatically adapt PID settings as the process model shifts, keeping loops stable even when dynamics change. By continuously identifying new process parameters in real time, it maintains optimal control without manual retuning.
• Expert Consulting: Our process control engineers work alongside your team to identify high-impact loops, implement gain scheduling strategies, design feedforward compensation schemes, and train operators on sustaining performance.
• Non-Intrusive Approach: We deliver results using your existing historical data minimizing production disruptions while maximizing control performance improvements.

Ready to make your control systems adaptive?

Contact us at info@picontrolsolutions.com or visit www.picontrolsolutions.com to schedule a consultation and discover how we can help your facility cope with variability and turn it into competitive advantage.

References

1: Polysense.ai, "Mastering Food Manufacturing Stability: Dynamic Control to Overcome Raw Material Variability," October 2025.

2: Control Engineering, "Gain scheduling handles nonlinear processes," Vance VanDoren, April 2025.

3: Wawelk.org, "Moving Beyond Fixed Logic: The Future of Adaptive Control," November 2025.

4: SMB CEO, "Adaptive Control Systems in Industrial Automation: Principles and Applications," June 2023.

5: ScienceDirect, "Dynamic gain scheduled process control," Journal of Process Control, 1998.

6: Control Guru, "Static Feed Forward and Disturbance Rejection," Doug Cooper and Allen Houtz, April 2015.

7: Fiveable, "Feedforward Control - Control Theory Class Notes," August 2025.

8: ScienceDirect, "Reinforcement learning approach to autonomous PID tuning," Computers & Chemical Engineering, May 2022.

9: ScienceDirect, "A multivariable on-line adaptive PID controller using auto-tuning neurons," Engineering Applications of Artificial Intelligence, 2003.

10: Shahouni et al., "Adaptive tuning of fractional order PID controllers for nonlinear processes using hybrid PSO DQN reinforcement learning," Scientific Reports, November 2025.

11: Industrial Tech Insights, "How Do AI/ML Algorithms Self-tune PID Controllers Automatically?" YouTube Educational Series, September 2025.

12: PiControl Solutions, "PID Controller Auto-Tuning Methods," November 2025.
