Achieving Measurable ROI from Process Control Optimization Projects
Est. Reading: 9 minutes
Achieving Measurable ROI from Process Control Optimization Projects 5
Process control optimization is no longer a luxury; it is a strategic imperative. With global competition intensifying and margins shrinking, industrial facilities are discovering that properly tuned control systems can deliver measurable ROI within months rather than years. This blog examines real-world process control optimization ROI case studies and quantifiable benefits from advanced process control (APC) and PID optimization projects across multiple industries, demonstrating that achieving measurable ROI from process control optimization projects is both realistic and repeatable.
The Business Case for Process Control Optimization
Every percentage point of process variability reduction translates directly to the bottom line. Research from McKinsey & Company indicates that optimizing advanced process controls at processing sites can generate $15 billion to $27 billion globally, with individual facilities achieving up to 15% throughput increase, 5% yield improvement, and 10% energy consumption reduction1. These numbers highlight the variability reduction benefits in industrial processes and the strong automation ROI available from well-executed industrial optimization projects.
The fundamental economics are straightforward: tighter control enables operators to push processes closer to operational limits without violating constraints, maximizing production rates without compromising safety or quality 2. When process variability is reduced, setpoints can be safely adjusted, which directly lowers energy consumption and improves product consistency 3. This is precisely how control system optimization and industrial process optimization drive energy reduction in manufacturing facilities while supporting yield improvement process control goals.

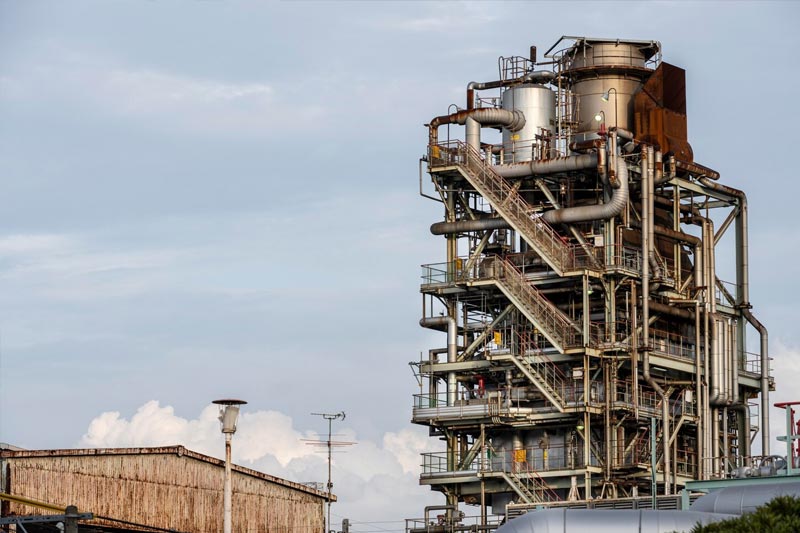

Case Study 1: Crude Distillation Unit APC Implementation
Project Overview
A refinery's Crude Distillation Unit (CDU) implemented APC system across multiple distillation columns and furnaces. The primary challenge was frequent changes in crude oil quality, which complicated both process stability and benefit assessment 4. This refinery APC implementation is one of several well-documented case studies of APC implementation in refineries that demonstrate measurable ROI from advanced process control.
Achieving Measurable ROI from Process Control Optimization Projects 6
Measured Results
The APC application successfully optimized product specifications and improved yields. The refinery crude distillation unit APC results are summarized below:
Performance Metric
Before APC
After APC
Improvement
Overhead Temperature Variability (σ)
3.55°F
1.84°F
48.1% reduction
VGO Chimney Temperature Variability (σ)
7.32°F
1.89°F
74.2% reduction
Wax Vapor Temperature Variability (σ)
5.99°F
1.09°F
81.8% reduction
Annual savings exceeded $10.9 million, a compelling demonstration that advanced process control APC investments pay dividends rapidly when properly implemented 4. This case underscores how throughput increase using model predictive control and variability reduction can drive energy savings from process control optimization at scale.
Case Study 2: Refinery Embedded APC for Crude and Vacuum Columns
Implementation Approach
Ergon's 20,000 BPD lube oil refinery in Newell, West Virginia implemented an embedded refinery APC on atmospheric crude and vacuum columns. The project utilized two model predictive control (MPC) applications combined with neural-net inferential sensors to stabilize control of critical product properties 5. This is a clear example of advanced process control benefits in refineries enabled by modern control loop optimization and control system optimization.
Quantifiable Benefits
The reduction in standard deviation allowed the refinery to reduce operating target ranges from 10°F to 6°F. A 4°F change in the Heavy Naphtha/Kero cut point shifts yields by approximately 400 BPD. At a $2/Bbl price differential, this generates $280,000 in additional profit from a single control improvement 5.
Key results included:
Substantial variability reduction (48-82% across key temperatures)
Minimized upsets during crude switches and inclement weather
Increased yields of higher-value products up to quality specifications
This case illustrates how throughput increase using model predictive control, combined with PID tuning for energy savings and quality improvement, strengthens the control loop optimization business case for any refinery considering industrial optimization projects.

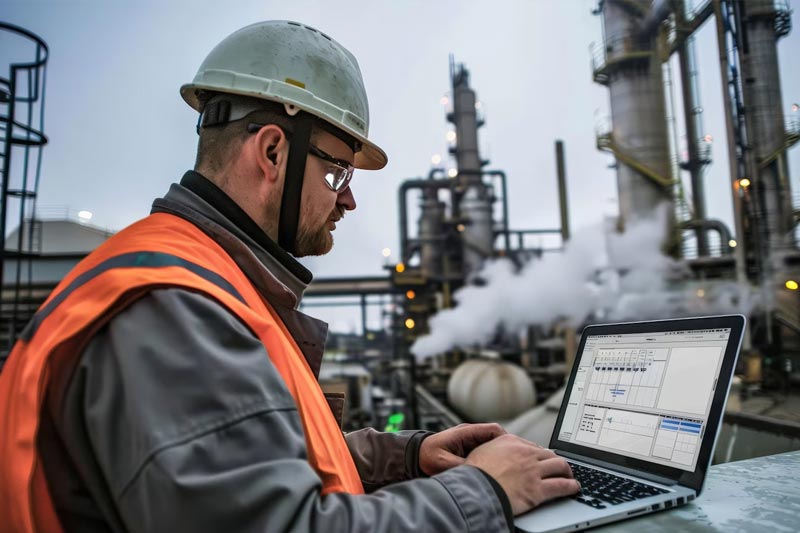

Case Study 3: Refinery Steam Optimization and Emissions Reduction
Challenge
One of the Mediterranean's largest refineries, Sarlux (a subsidiary of the SARAS Group), faced growing pressure to reduce energy costs and greenhouse gas emissions while maintaining production quality. Steam consumption across its FORMEX aromatics units represented a significant and rising cost, and the refinery needed a solution that could optimize energy use without compromising the production of high-purity benzene, toluene, and xylene.6
Achieving Measurable ROI from Process Control Optimization Projects 7
Solution and Savings
Sarlux partnered with Honeywell Process Solutions to implement advanced process control using the Honeywell Profit Suite on its FORMEX units. The APC applications autonomously optimized solvent-to-extract and internal reflux-to-feed ratios, directly reducing steam demand across strippers and distillation columns.
Savings Category
Result
Total Steam Savings
6,200 tons/year
CO₂ Emissions Reduction
6,200 tons/year
Return on Investment
Less than 6 months
The system operates almost entirely autonomously; under normal conditions, the operator is only required to set feed targets for the two sections. This level of automation ensures that steam and power network optimization savings are sustained consistently over time.
Case Study 4: Mining Operations Automation Roadmap
Context
A major copper producer experienced low copper and gold recoveries due to unstable plant operation. The instability caused the operations team to revert to manual control, creating a cycle of “firefighting” rather than optimization. Limited visibility into underperformance root causes further compounded the challenges 7.
Three-Year Improvement ProgramThree-Year Improvement Program
The mining automation roadmap addressed three key work fronts:
Production Intelligence: Improved decision-making through better data visibility
Capability Development: Training and knowledge transfer for sustained value creation
Process Control Optimization Projects: Systematic improvements to process stability
Results
Over three years, the projects executed contributed to:
15% improvement in gold recovery
6% improvement in copper recovery7
This mining automation roadmap for copper and gold recovery demonstrates that process control optimization is not merely about installing technology. It requires an integrated approach combining technology, people development, and continuous improvement methodologies. These results also confirm that achieving measurable ROI from process control optimization projects extends well beyond traditional refining and chemical sectors into mining and minerals processing.
Typical ROI Metrics Across Industries
Industry surveys and process control optimization ROI case studies reveal consistent patterns in APC and optimization project returns:
Metric
Typical Range
Best Practice
Payback Period
3-9 months
3-6 months
Throughput Increase
3-15%
8-15%
Energy Reduction
5-10%
8-12%
Yield Improvement
2-5%
4-6%
Variability Reduction
40-80%
60-85%
Research indicates that APC initiatives typically report payback periods of 3 to 9 months, though maintaining peak efficiency requires ongoing attention to changing operational conditions and process equipment 8. These benchmarks support energy savings from process control optimization, throughput increase in manufacturing, and yield improvement through PID tuning as the primary drivers of automation ROI.
From a financial perspective, many organizations now compare APC and MPC ROI when evaluating investment options. The payback period for APC implementation and the broader payback period process control view are increasingly used as key metrics for justifying control system optimization and industrial optimization projects.

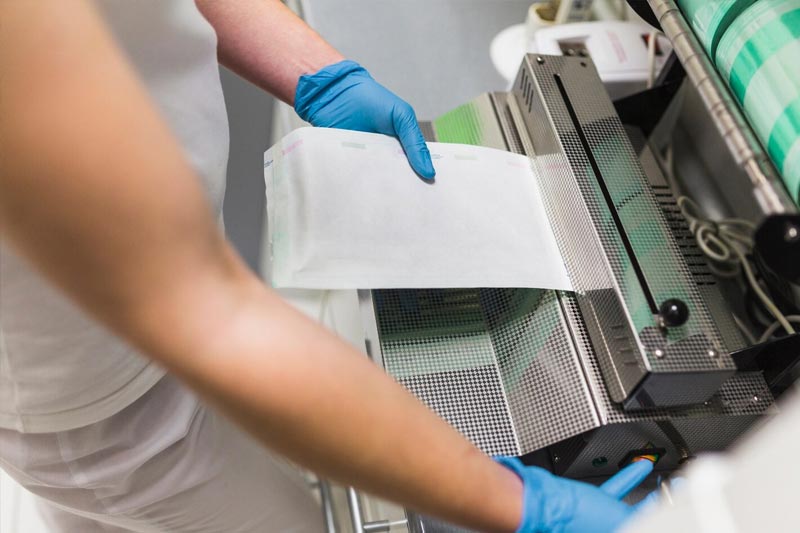

Case Study 5: Laminator Temperature Control
Problem Statement
A manufacturing laminator process experienced temperature variability that caused energy overuse and product inconsistencies. The existing control system struggled to maintain laminator temperature control, consuming more energy than necessary to reach and maintain setpoint 3. This scenario created a strong control loop optimization business case in discrete manufacturing.
Achieving Measurable ROI from Process Control Optimization Projects 8
Problem Statement
By implementing tailored PID tuning and gain scheduling, engineers reduced temperature variability significantly. This improvement enabled the system to maintain quality at a slightly lower temperature, achieving energy savings without compromising product quality. This is a straightforward example of PID tuning for energy savings and quality improvement in a non-refinery setting.
PID Tuning Solution
By implementing tailored PID tuning and gain scheduling, engineers reduced temperature variability significantly. This improvement enabled the system to maintain quality at a slightly lower temperature, achieving energy savings without compromising product quality. This is a straightforward example of PID tuning for energy savings and quality improvement in a non-refinery setting.
Financial Impact
10% reduction in energy costs
5% increase in production quality due to reduced rejects from temperature inconsistency 3
This laminator temperature control optimization case study illustrates how even relatively simple PID optimization projects, without full APC implementation, can deliver substantial returns. It also validates PID optimization ROI in manufacturing and supports the broader argument for energy reduction in manufacturing through targeted control loop optimization.
Keys to Achieving Measurable ROI
1. Rigorous Baseline Measurement
Successful industrial optimization projects establish clear before-and-after metrics. Standard deviation of key process variables provides an objective measure of control system performance improvement. The coefficient of variation (CV), defined as standard deviation divided by mean, enables comparison across different processes and scales 9. This discipline is fundamental to sustaining ROI from process control optimization and quantifying variability reduction benefits in industrial processes.
2. Sustained Benefits Require Maintenance
APC systems typically operate at peak efficiency immediately following implementation. However, alterations in operational conditions and process machinery can lead to a decline in APC performance over time, with controllers potentially being deactivated 8. Sustainable returns require:
Regular model updates
Operator training and engagement
Performance monitoring dashboards
Periodic re-tuning as process conditions change
These practices are essential for sustaining ROI from process control optimization over the full lifecycle of the solution, rather than allowing measurable ROI from advanced process control to erode over time.
3. Integration with Business Objectives
The most successful projects align control improvements directly with business objectives. This means identifying the key process variables that most directly impact product quality, energy consumption, and throughput, then focusing optimization efforts on those high-value targets 10. When process control optimization for operational excellence is tied to clear financial goals, the internal business case for control loop optimization becomes compelling.
4. Leveraging Modern Software Tools
Modern PID optimization software can significantly reduce the time and cost of control system improvement projects. Tools using advanced mathematical optimization approaches, such as Nonlinear Constrained General Reduced Gradient (NC-GRG) methods, can compute optimal tuning parameters more efficiently than traditional trial-and-error or empirical rule-based approaches 11. This kind of control system optimization reduces engineering effort while improving control loop performance.
PiControl Solutions PITOPS software exemplifies this approach, using NC-GRG optimization to deliver optimal tuning parameters in hours rather than days, without requiring intrusive plant tests. As part of PiControl Solutions APC and PID optimization software offerings, PITOPS supports control loop optimization, process variability reduction, and yield improvement process control across a wide range of industries.
Calculating Your Potential Returns
Understanding how to calculate ROI for process control projects is essential for building a compelling internal business case. The payback period formula provides a straightforward starting point:
Payback Period = Investment Cost ÷ Annual Savings
For process control projects, annual savings typically derive from:
Energy reduction: Lower fuel, steam, and electricity consumption
Yield improvement: More saleable product from the same feedstock
Quality improvement: Reduced off-spec production and reprocessing
Throughput increase: More production from existing assets
Maintenance reduction: Less equipment stress from smoother operation
A benchmark payback period of 3 to 5 years is generally considered acceptable for most industrial investments 12. Process control optimization projects, including those involving advanced process control (APC) and model predictive control (MPC), consistently outperform this benchmark, with paybacks typically measured in months rather than years. This makes the payback period of process control projects highly attractive compared to many other industrial automation projects with fast payback.
Looking Forward
Process control optimization represents one of the highest-ROI investments available to manufacturing operations. The case studies presented demonstrate that facilities across diverse industries, from petroleum refining to mining to discrete manufacturing, are achieving measurable returns within months of implementation.
The key success factors remain consistent: establish rigorous baselines, select high-impact control loops, leverage modern optimization tools, and maintain systems to sustain benefits over time. For organizations seeking competitive advantage through process control optimization for operational excellence, these industrial optimization projects deserve priority consideration.
